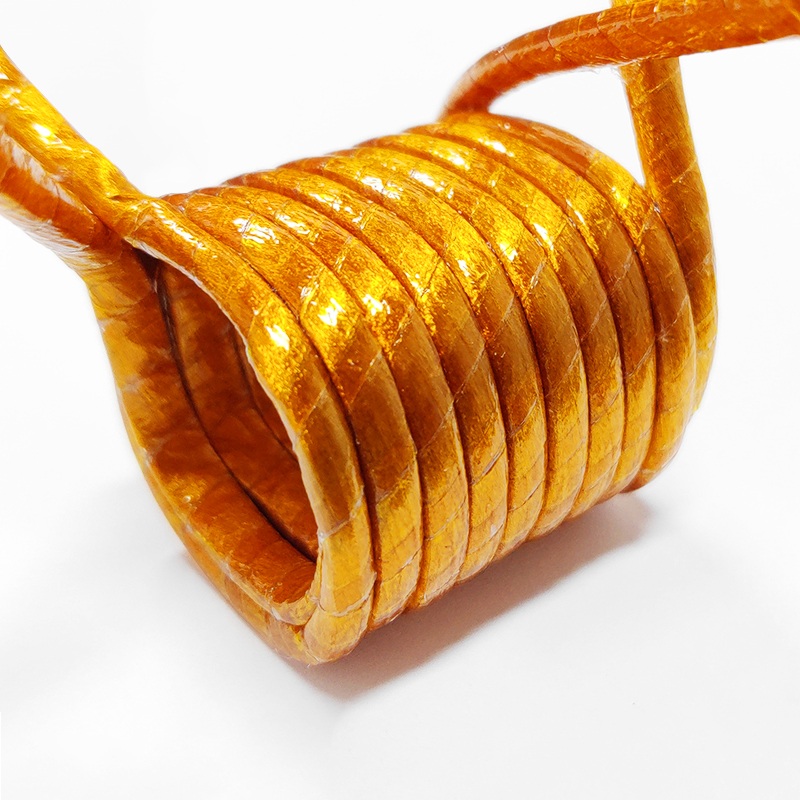

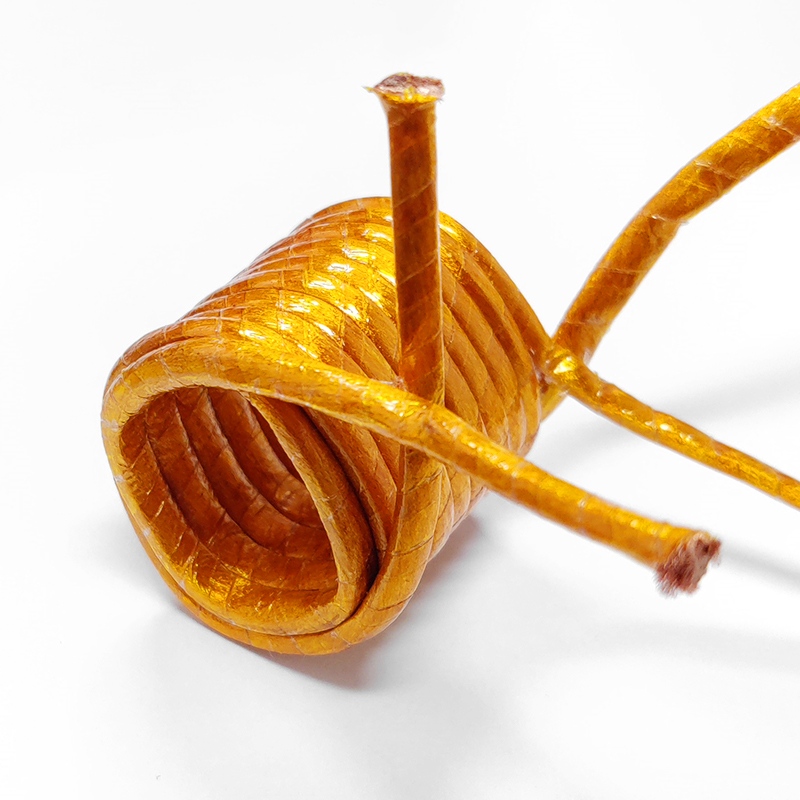

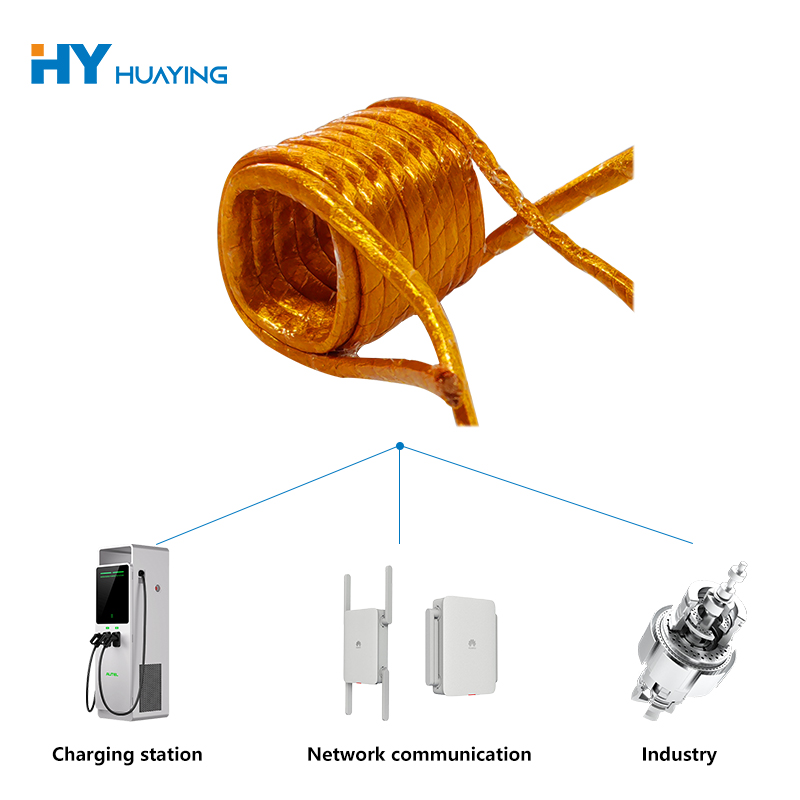

Ikhoyili yocingo yeLitz
I-Huaying Litz Wire Coil yimveliso ekhethekileyo yezicelo ze-high-frequency eyenziwe ngu-Huizhou Huaying Electronic Technology Co., Ltd. Amandla enkampani abonakaliswe kwimarike. Le nkampani ikwasebenzisana neShenzhen Research Institute of Huazhong University of Science and Technology on R&D. Ngaphambili, xa besebenzela iinkampani ezinkulu ezifana ne-Xiaomi kunye neHuawei, bazenzele iikhoyili ezifanayo kwizinto zabo ze-elektroniki ezisebenza rhoqo, bezenzela igama eliqinileyo. Ngaphaya koko, inkampani yi-ISO 9001 kunye ne-IATF 16949 eqinisekisiweyo, iqinisekisa ulawulo olungqongqo lwemveliso. Ukusuka kuyilo ukuya kuhambiso, inyathelo ngalinye lale Litz Wire Coil lithobela imigangatho, liqinisekisa ukuba unoxolo lwengqondo xa uyikhetha.
Ulawulo olungqongqo lweMveliso yokuJika ukubala ukuchaneka
Xa kusenziwa iiKhoyili zocingo zeHuaying Litz, ukuchaneka kokubala kubalulekile. Nokuba impazamo encinci kwinani lokujika inokuphambuka kwiparamitha ye-electromagnetic ye-transformer kwaye ibangele iingxaki ngokulula ngexesha lofakelo olufakwe ngaphakathi. Oku kuyinyani ngakumbi xa ujija iikhoyili ngokujika okuninzi, apho nokuba ukungakhathaleli okuncinci kunokukhokelela kwiimpazamo. Kudala siyiqwalasela le nto kwaye saphucula imigangatho yemveliso ye-7S yeworkshop yethu ngobuchwepheshe obukrelekrele. Ngoku sisebenzisa iimatshini zokujija ezizenzekelayo. Umatshini ngamnye unenkqubo yokubala echanekileyo ebeka iliso inani lokujika ngexesha lokwenyani ngexesha lokujika, ukugcina impazamo ngaphakathi kwe-±1 ukujika. Oku kuthembeke kakhulu kunokokujija ngesandla okanye oomatshini abaqhelekileyo.
Ukwenziwa ngokwezifiso koBume beMveliso
Ubume bekhoyili ye-transformer kufuneka ihlangabezane ngokugqibeleleyo neenkcukacha zabathengi, ngaphandle koko kuya kuchaphazela ukucubungula kunye nokuhlanganisana okulandelayo. Oku kuyinyani ngakumbi kwiikhoyili eziqhelekileyo ezibonwa "iikhoyili ezielliptical" kunye "neekhoyili ezirhangqwe ezixande" kwimarike. Ngelixa zinokubonakala zifana noxande oluqhelekileyo, zifuna ukuchaneka okuphezulu komgangatho, zizenze zithande ukuveliswa kwemveliso engaqhelekanga ngabavelisi abaninzi. Sityala umzamo omkhulu kulawulo lokumila kwaye sinendibano yocweyo yokubumba ezinikeleyo. Nokuba umthengi unqwenela ubume bekhoyili ye-Huaying Litz, sinokwenza ngokwezifiso ukubumba okusekwe kwimizobo eneenkcukacha ezinobungakanani. Nokuba sineemilo ezintsonkothileyo, siqinisekisa ukunyamezelana okuphakathi kwe-0.05mm, sihlangabezana ngokupheleleyo neemfuno zokuqhubekeka ezilandelayo.
Ukusebenza kweMveliso ePhambili kuDibana neMigangatho
Ikhoyili "yintliziyo" ye-transformer. Ukuqinisekisa ixesha elide, ukusebenza okukhuselekileyo, amandla ombane, amandla okushisa, kunye namandla omatshini kubalulekile. Ikhoyili yethu yeHuaying Litz Wire ibeke umzamo omkhulu kwezi nkalo. Ngokubhekiselele kumandla ombane, umaleko wokugquma usebenzisa imveliso yenkampani yethu ekwaziyo ukumelana nobushushu obuphezulu. Ivavanywe ukumelana nokuthembeka kombane obunzima obufana nokuhamba kombane kunye nokutshintsha kokuhamba ngaphandle kokuqhekeka kwe-dielectric. Ngokubhekiselele kumandla okushisa, i-coil inokumelana nobushushu obuveliswa ngumbane nangona ixesha elide lomsebenzi ogcweleyo. Ubomi benkonzo ye-insulation layer buhambelana nobomi be-transformer jikelele, ukuyikhusela kumonakalo wobushushu xa kwenzeka isiphaluka esifutshane.
Iinkcazo kwitheyibhile ziyinxalenye yenkcazo yemveliso enokuthi yenziwe ngokweemfuno zabathengi
| Idayamitha yomqhubi × Inani lezabelo |
Umqhubi omnye wobhedu Uluhlu lokunyamezela umthamo ngeenxa zonke (mm) |
Ixinene ngaphandle ububanzi ±0.1mm |
Idayamitha yangaphandle egqityiweyo(mm) | Ukupakisha ubude (M/axis) |
Umqhubi Ukuchasa (20℃) (Ω/km) |
|
| Ukutyeba(mm) (MAX) |
Ububanzi (mm) (MAX) |
|||||
| 0.06×2000 | ±0.003 | 3.88 | 2.4 | 4.5 | 500 | 3.611 |
| 0.06×2000 | ±0.003 | 4.07 | 2.7 | 4.2 | 500 | 3.283 |
| 0.07×1200 | ±0.003 | 3.4 | 2.0 | 4.5 | 500 | 4.422 |
| 0.07×2000 | ±0.003 | 4.4 | 2.4 | 5.8 | 500 | 2.653 |
| 0.07×2200 | ±0.003 | 4.61 | 2.7 | 5.5 | 500 | 2.412 |
| 0.10×200 | ±0.003 | 1.72 | 2.2 | 1.5 | 800 | 13.001 |
| 0.10×400 | ±0.003 | 2.66 | 1.7 | 3.1 | 300 | 6.5 |
